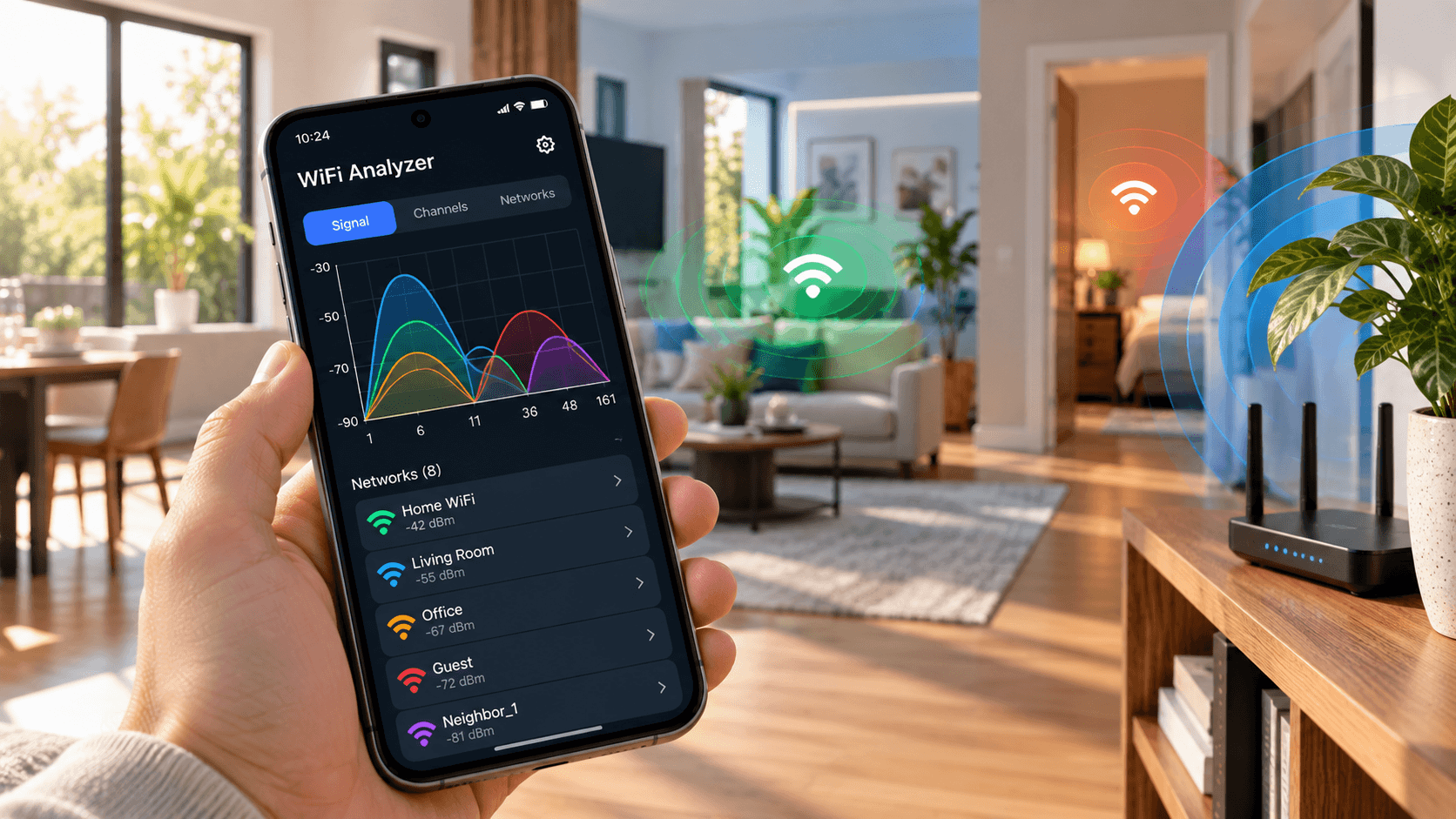

How to Use a WiFi Analyzer to Fix Your Network

Slow WiFi in one corner of the house and a perfect connection in another is rarely random. A WiFi analyzer turns that invisible mess of radio signals into numbers and graphs you can actually read, showing you exactly where your signal drops, which channels are crowded, and what is worth changing for better network performance. This guide walks through how the tool works, what its data actually means, and how to use it to fix a genuinely slow wifi network rather than just guessing.

What Is a WiFi Analyzer?

A WiFi analyzer is a piece of software, either a dedicated app or a feature built into your operating system, that scans the radio signals around you and reports on every wireless network it can detect, including your own. Instead of the vague signal bars your phone normally shows, it reports precise numbers, exact signal quality, which channel a network is using, and how much competing traffic is nearby, giving you the same visibility a network engineer would use to diagnose a problem.

How Does It Work?

Your device already has a WiFi radio constantly listening for nearby networks, since that is how it finds one to connect to in the first place. A WiFi analyzer simply exposes that raw wifi signals data instead of hiding it behind a simplified bars icon. It reads the beacon signals every access point broadcasts several times a second, extracting the network name, its frequency in MHz, the specific channel it occupies, and the RF strength reaching your device, then plots all of it on a live, updating graph through a clean interface.

What Can It Tell You?

Beyond a single signal reading, a good analyzer shows you the full picture of your wireless environment and overall network health. You can see every nearby wifi network competing for the same airspace, not just your own, which channels are crowded and which sit mostly empty, how your own signal strength changes as you walk from room to room, and roughly how far you are from your access point based on signal decay. Some modern apps go further, offering plain-language, detailed insights that translate the raw numbers into a specific suggestion, such as recommending a less crowded channel or flagging a dead zone that needs attention, improving overall user experience without requiring any networking background.

Understanding Signal Strength and dBm

Signal strength is measured in dBm, a negative logarithmic scale where numbers closer to zero mean a stronger signal. A reading between -30 and -50 dBm is excellent and supports the fastest possible download speeds your hardware allows. Between -50 and -67 dBm is still solidly reliable, generally considered the baseline for smooth video calls and streaming. Once you drop below -70 dBm, connectivity starts to suffer noticeably, and anything worse than -80 dBm is effectively a dead zone, where connections become unstable or drop entirely.

Signal strength alone is not the whole story, though. SNR, or signal-to-noise ratio, matters just as much, comparing your signal against background interference from other electronics. A strong signal sitting in a noisy environment can still perform poorly, so a healthy connection needs both a strong signal and a reasonably quiet noise floor underneath it.

Finding Crowded WiFi Channels

Every WiFi band is divided into channels, and when too many nearby networks pile onto the same one, they end up competing for the same airtime, slowing everyone down even if each individual signal looks strong. On the 2.4 GHz band, only channels 1, 6, and 11 avoid overlapping with each other, so a router set to any other channel is very likely stepping on a neighbour's signal without realising it. An analyzer's channel graph makes this immediately visible, showing every network stacked on top of each other by channel number, with the least crowded option standing out clearly once you know what to look for.

How a WiFi Analyzer Compares Every Band

Each frequency band trades range for speed differently. The 2.4 GHz band travels furthest and penetrates walls best, but offers only three usable non-overlapping channels and tends to be the most congested, since it is shared with older devices, microwaves, and Bluetooth accessories. The 5 GHz band offers far more channels and much less interference, at the cost of a shorter range and weaker wall penetration. The newest 6 GHz band, available on WiFi 6E and WiFi 7 hardware, currently carries the least congestion of all three, since relatively few devices support it yet, though its range is the shortest of the three. A WiFi analyzer that supports all three bands lets you compare them directly rather than guessing which one your devices should prefer.

How to Use One Step by Step

Start by opening the analyzer somewhere near your access point and noting the baseline signal strength and which channel shows the least overlap. Then walk slowly through every room you actually use, watching how the signal strength changes, and note any spot where the reading drops below roughly -70 dBm, since that is a genuine weak spot rather than just a temporary dip. Pay attention to what sits between your router and a weak spot for troubleshooting purposes, since thick concrete or brick walls, large mirrors, metal filing cabinets, and even a fish tank can all cause serious signal loss where a simple drywall partition would not.

Android, PC, and Other Analyzer Options

On Android, dedicated mobile apps remain the easiest way to get this data, with the classic ad-free WiFi Analyzer by Farproc still popular, alongside newer options that add AI-generated plain-language suggestions on top of the same underlying scan data. On Windows, a free version of WiFi Analyzer available through the Microsoft Store provides the same channel graph and dBm readings, with full support for the 6 GHz band on Windows 11 machines with compatible hardware. On a Mac, holding the Option key while clicking the WiFi icon in the menu bar reveals raw RF and noise data instantly with no app required, or a dedicated tool like WiFi Explorer offers a more complete desktop interface for the same job. iPhone has the weakest native support of any platform, so a dedicated third-party app is genuinely necessary there to see real dBm figures rather than simple signal bars.

Professional Tools for Deeper Interference Detection

For genuine interference detection beyond a basic channel graph, network engineers often reach for a proper spectrum analyzer instead. Rather than only detecting WiFi networks, this kind of spectrum analysis picks up non-WiFi sources of interference too, such as cordless phones, baby monitors, and microwave ovens, all of which can degrade a connection without ever showing up on a normal wifi network scan. Acrylic WiFi Analyzer is one widely used option on Windows, offering a free version alongside paid tiers, and includes monitor mode for capturing raw packet data, an APs list showing every access point in range, and bandwidth and latency metrics aimed at diagnosing genuinely stubborn problems. A handful of open source alternatives exist too for anyone comfortable with a steeper learning curve, and most professional tools offer some kind of demo before you commit to a paid tier.

Improving Your Network Based on What You Find

Once you know where the problems actually are, fixing them is usually straightforward. If one specific area is weak, try relocating your router to a more central, elevated position away from thick walls and large metal objects, since router placement alone often resolves a dead zone without buying anything new. If a channel scan shows heavy congestion, manually switching your router to a quieter channel, usually available in its admin settings, can meaningfully improve download speed even without moving anything physically. And if a large portion of your home sits in weak coverage no matter what you try, a mesh WiFi system or a range extender placed roughly halfway between your router and the affected area is usually the more permanent fix.

Is It Legal to Scan Networks That Are Not Your Own?

Yes, since a WiFi analyzer only reads signals already broadcast openly through the air, the same way a radio picks up a station. Scanning nearby networks to check channel congestion is fine. Connecting to or accessing someone else's network without permission is a separate matter entirely.

What Features Should I Look for in a Good App?

Prioritise support for all three bands, a live signal strength graph you can walk around with, and a clear channel rating system that flags the least crowded option. Extras like AI-generated recommendations, a connected-device list, and export options for sharing a scan are useful but secondary to those basics.

Final Thoughts

A WiFi analyzer turns a vague sense that your internet feels slow into an actual, readable picture of what is happening around your home. Understanding what dBm readings, channel overlap, and the different frequency bands actually mean transforms a frustrating guessing game into a short walk through your house with clear, fixable answers waiting at the end of it. Whether the fix ends up being a different channel, a repositioned router, or a mesh system for a stubborn dead zone, the analyzer's job is simply to show you exactly where to look first.
